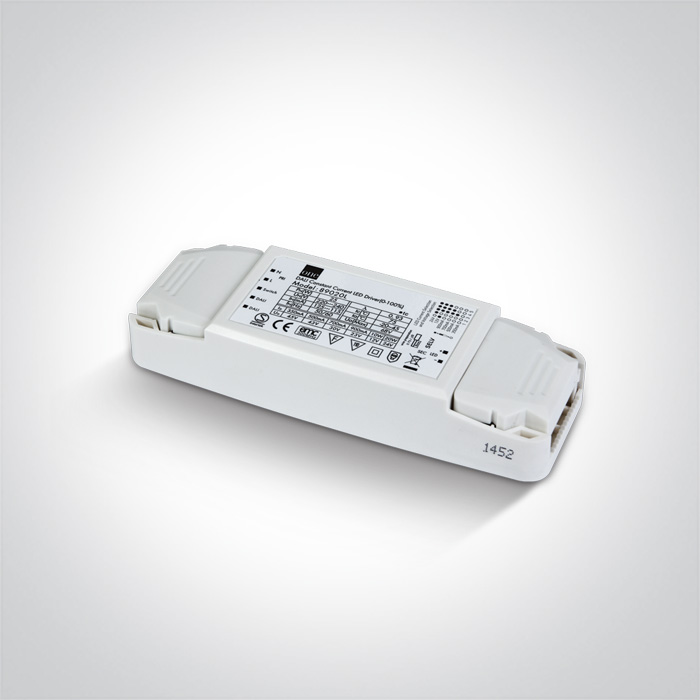

One-Light 220-240v 20W DALI & Push to DIM LED Driver Adjustable Output (Product Code: 89020L)

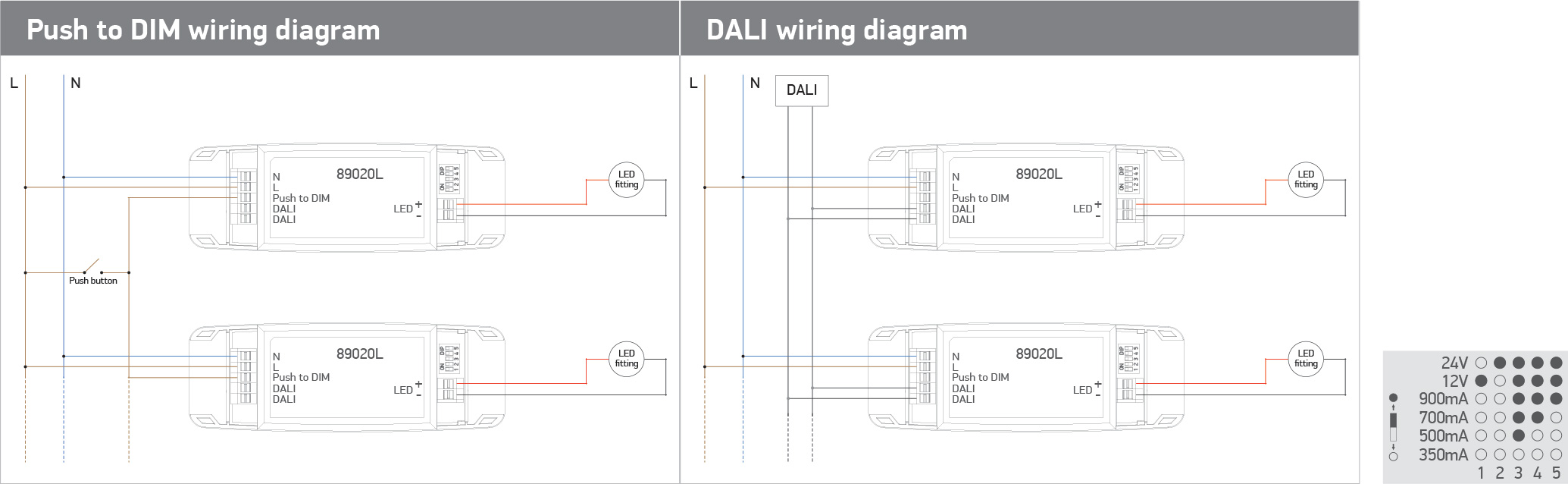

DALI & Push to DIM LED driver Adjustable output using DIP switches.
Gear Type - Led Driver
Input Voltage - 220-240V
Height - 30mm
Length - 150mm
Width - 52mm
50 Hz - Yes
60 Hz - Yes
Power (Watts) - Refer to Table
Power Factor - 0,93
Constant Voltage - Yes
Constant Current - Yes
12V - Yes (10W)
24V - Yes (20W)
350mA - 9-45V (3.2-15W)
500mA - 9-43V (4.5-20W)
700mA - 9-30V (6.3-20W)
900mA - 9-23V (8.1-20W)
IP Rating - IP20
Safety Class -
Dimmable - Yes - Dali & Push to Dim
Ambient Temp - 20~+45°C
Operating Temp - 75°C
Housing Material - Plastic
Output Terminal - Cable
£45.00 exc VAT
(£54.00 inc VAT)
