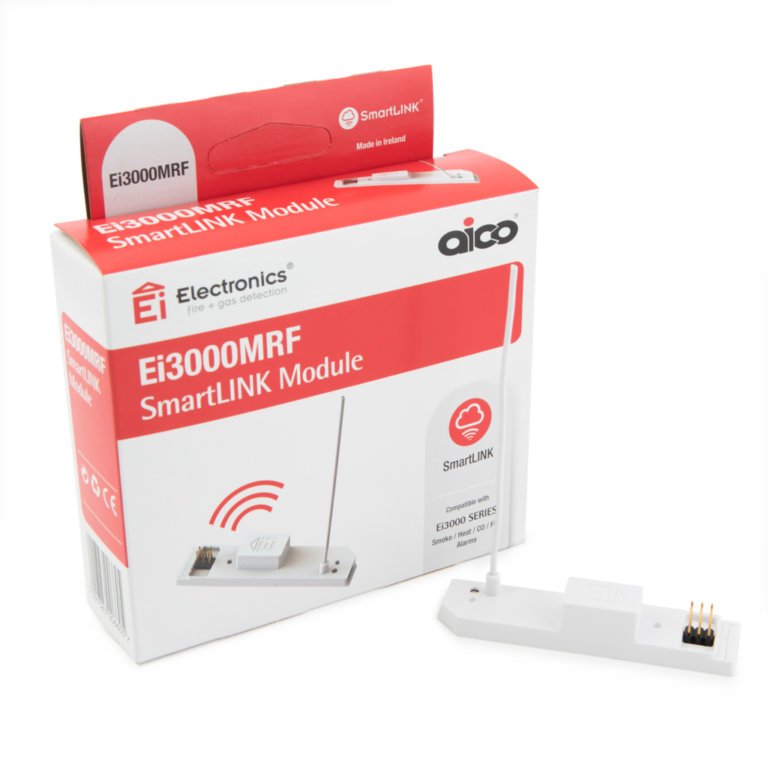

SmartLINK Module Ei3000MRF

The new SmartLINK technology still provides the same proven wireless interconnection technology as RadioLINK and RadioLINK+, using Radio Frequency signals and is completely compatible with both existing systems.

No need for tricky cable runs, alarms interconnect using Radio Frequency signalsWhen one alarm is triggered, all others sound for audibility throughout the propertyExpand existing systems easily by adding in SmartLINK technologyAchieve remote whole-system data monitoring and extraction when access is not possibleTo add SmartLINK technology to your system, simply plug SmartLINK modules into any 3000 Series alarm head.

• Supply Voltage: Powered from Alarm
• RF Frequency: 868MHz band (1% duty cycle)
• RF Power: +10dBm
• RF Protocol: Proprietary RF Protocol using multi-path, multi-repeater mesh architecture
• RF Range: >100 metres in free air, 30 metres in standard property
• System Size: Up to 12 RF devices
• Indicator LED’s: 3 colour LED: Blue, Green and Red
• Data Monitoring: Via Ei1000G Gateway
• Data Download: Via EiUSB1
• Operating Temperature: -10°C to 40°C
• Humidity Range: 15% to 95% relative humidity
• Plastic Material: UL 94 V0 flame retardant
• Dimensions – Product: 80mm x 18mm x 16mm
• Dimensions – Boxed: 120mm x 110mm x 35mm
• Weight: 10g (product only), 62g (boxed)
• Guarantee: 5 years
